Overview

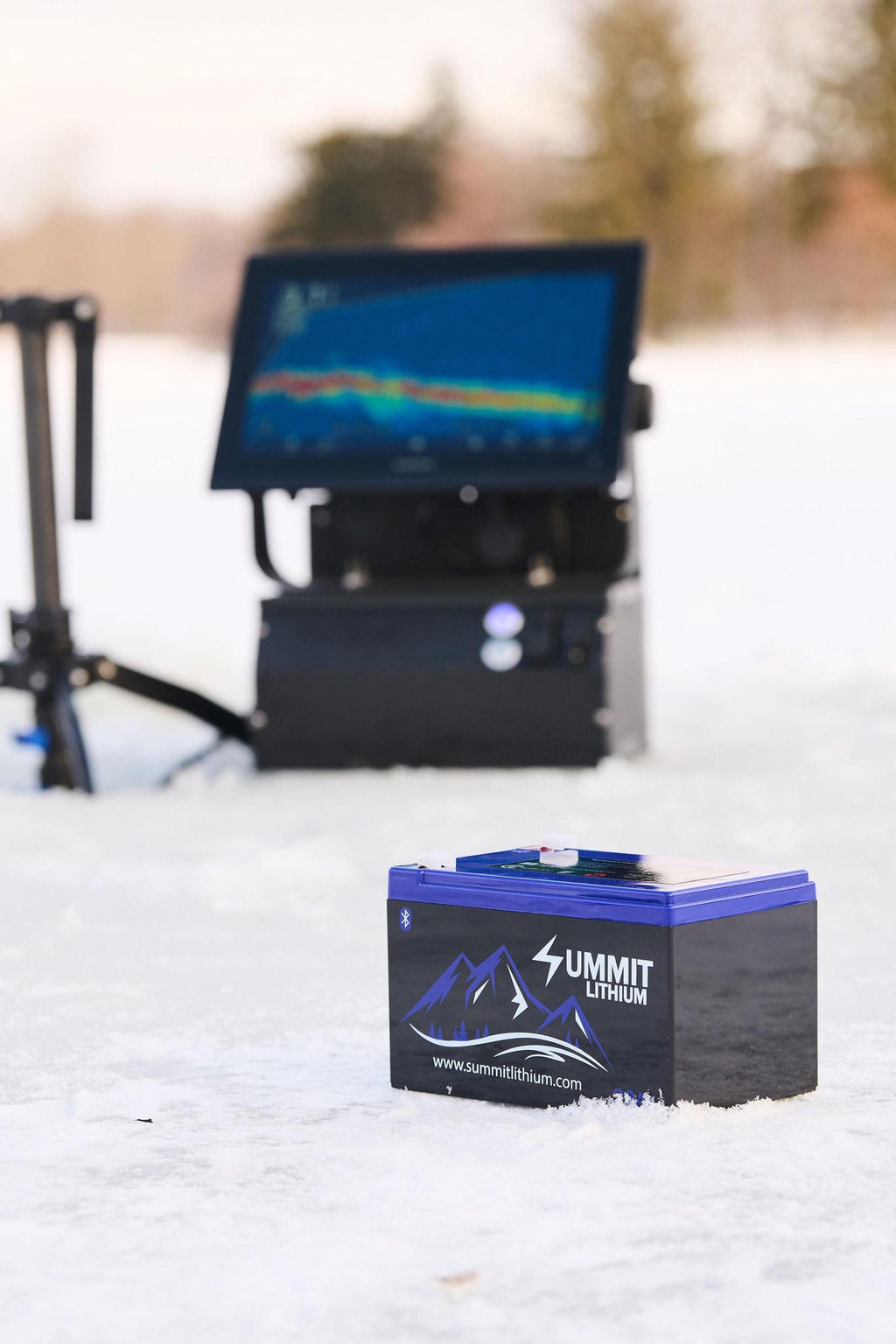

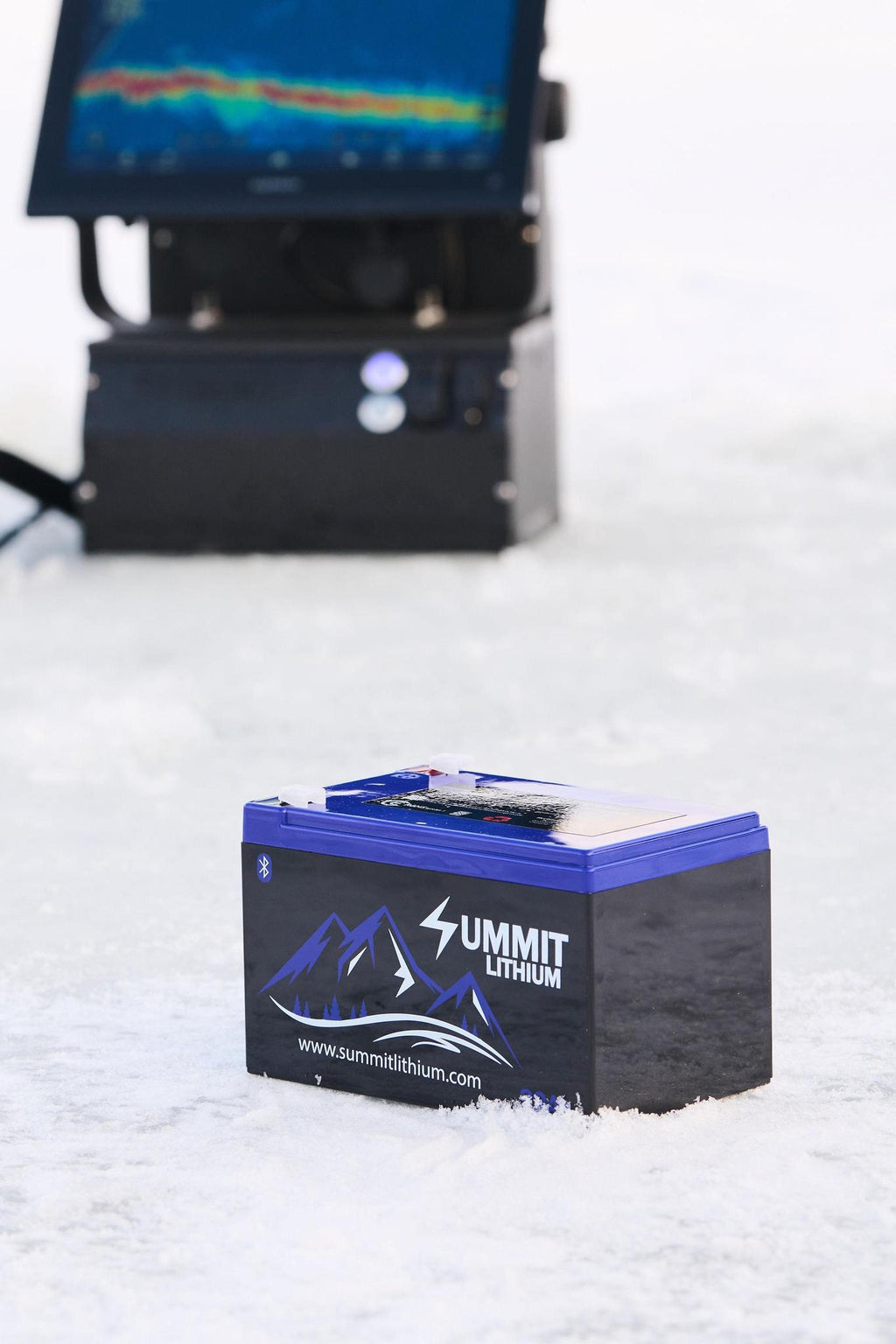

The Summit Lithium 14.8 Volt 32Ah NMC Battery is the sweet spot for most forward-facing sonar setups. It offers excellent runtime, reliable cold-weather performance, and the power overhead needed for 9–10" screens without stressing the battery. The 32Ah is the workhorse of the lineup — strong, stable, and built for anglers who fish long hours but want a to save weight over the 52ah battery.

Industry leading Battery Management Platform
     Core Features:

• Real-Time Performance Monitoring
• State of Charge (SOC) accuracy to 99.5%
• Individual cell voltage tracking (±0.01V)

     Multi-zone temperature profiling

• Advanced Protection Systems
• Instantaneous over/under voltage response
• Microsecond short-circuit interruption
• Multi-point thermal management

     Active Cell Balancing

• Continuous voltage synchronization
• Prevention of cell degradation during cycles
• Enhanced energy preservation

Key Features:

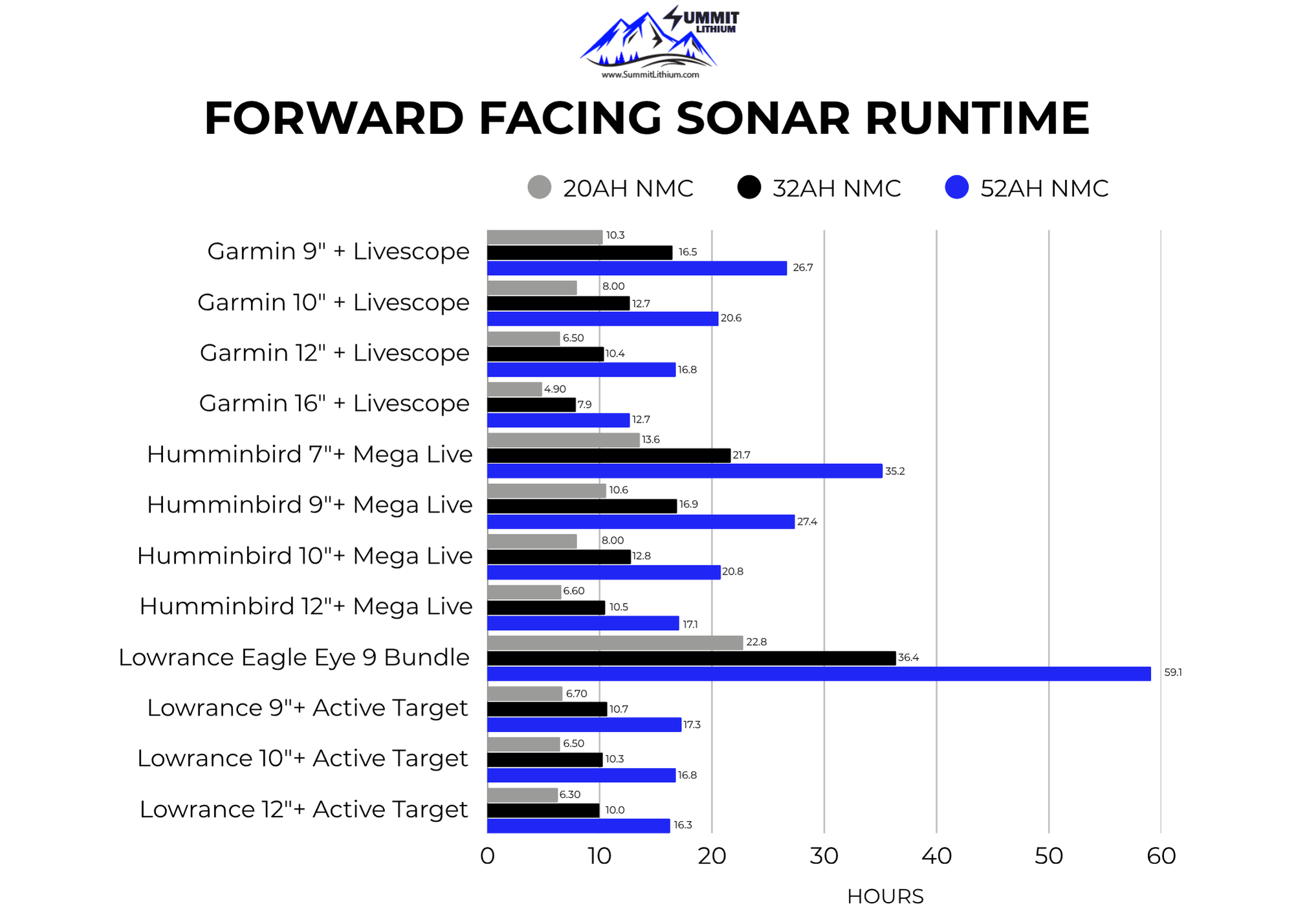

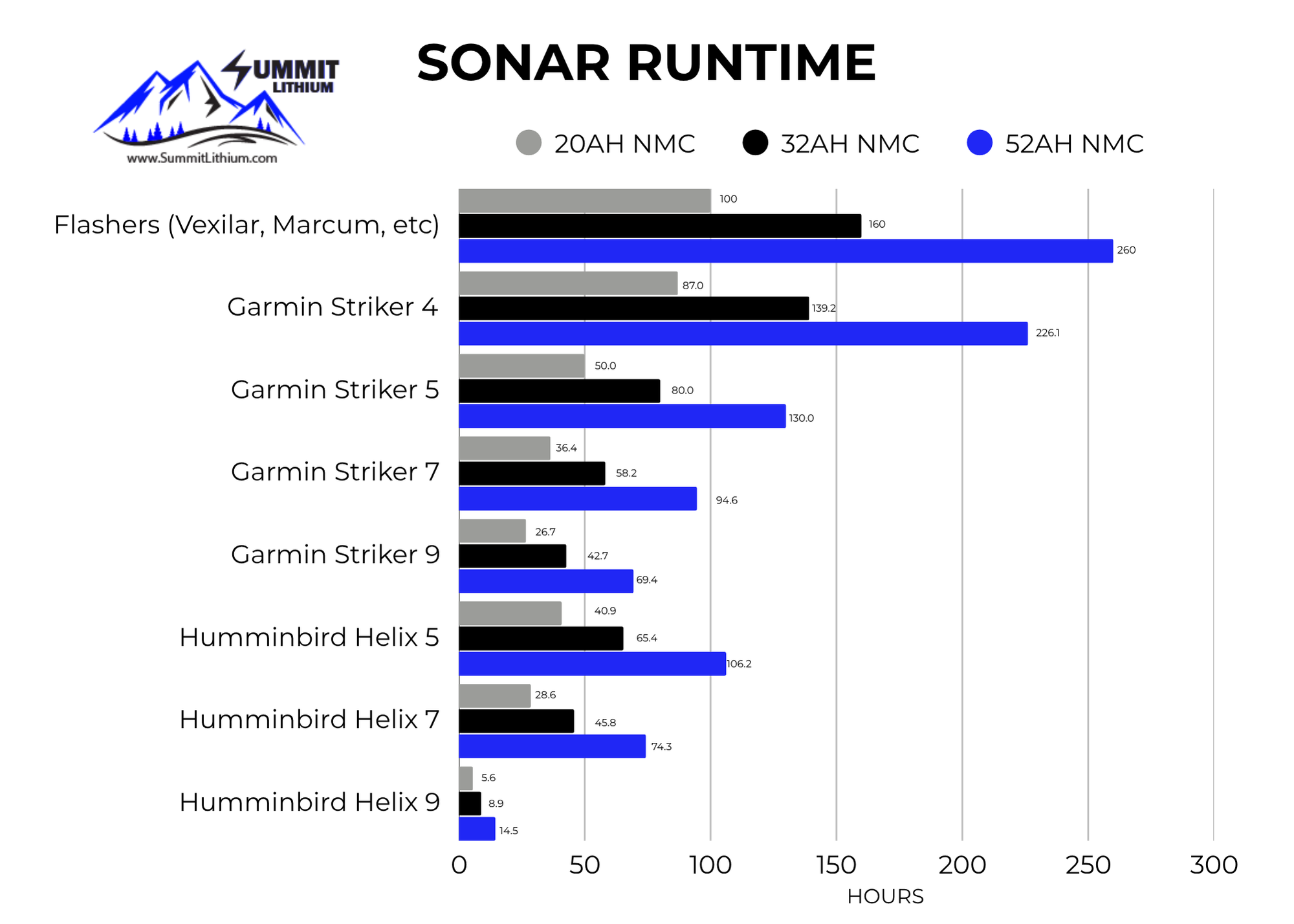

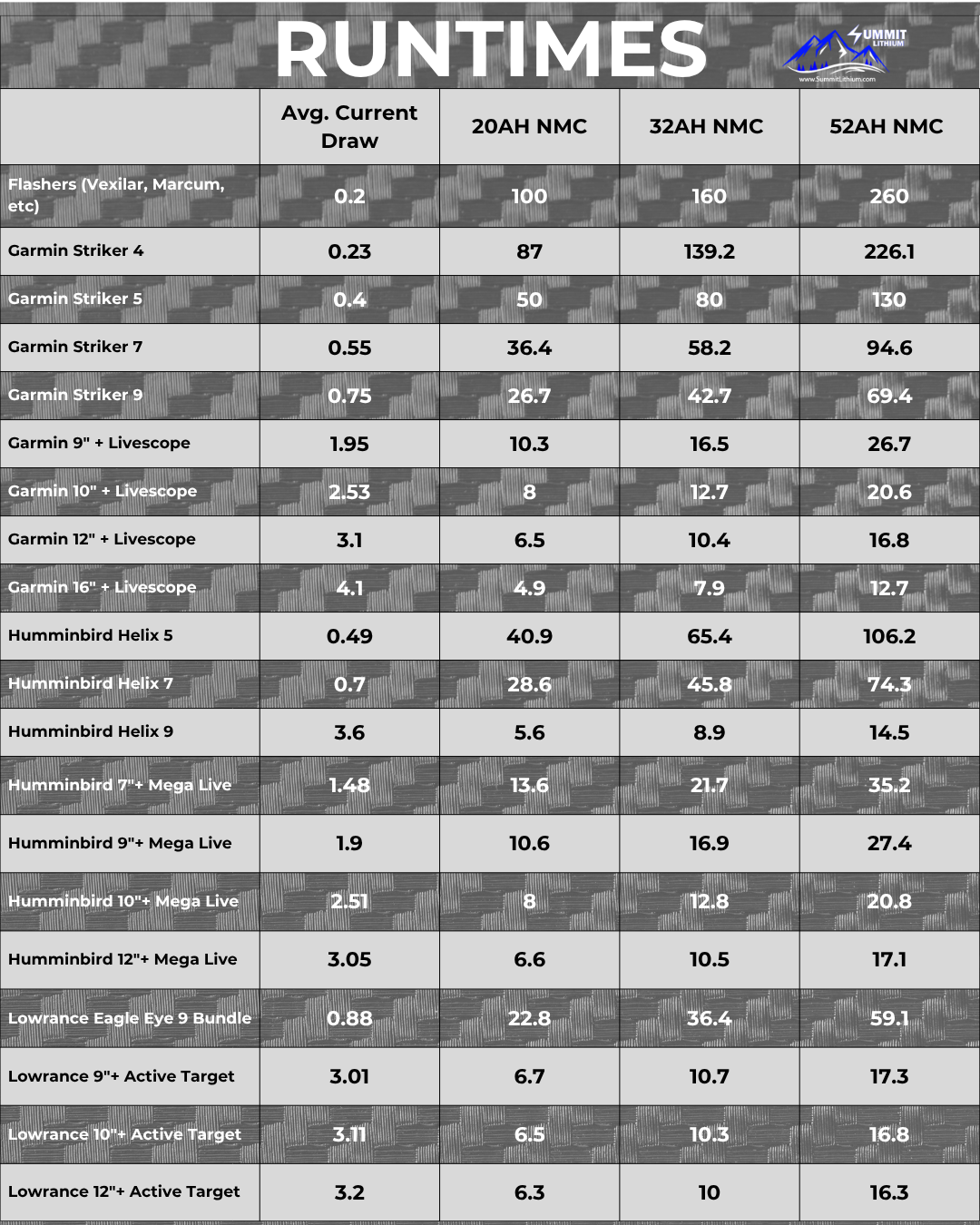

• All-day power for mid-size sonar bundles
• High-stability 14.8V output for crisp FFS imaging
• Excellent cold-weather performance
• Bluetooth App support — check charge, health, cycles
• Lightweight at 4.92 lbs
• NMC chemistry with high energy density
• Fast 6A charging included
• SAE harness in the box
• Integrated BMS for safety and reliability

Ideal For:

• Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
• 9–10" screens
• All portable shuttles
• All-day ice fishing
• Tournament scouting

Technical Specs:

• Model: 3204
• Voltage: 14.8V nominal
• Peak Voltage: 16.8V
• Capacity: 32Ah
• Max Continuous Discharge: 15A
• Weight: 4.92 lbs
• Chemistry: Lithium NMC
• Bluetooth App: Yes
• Certification: UN38.3
• Dimensions: 5 7/8" x 3 7/8" x 3 5/8"
• Weight: 4.8 lbs

What’s Included:

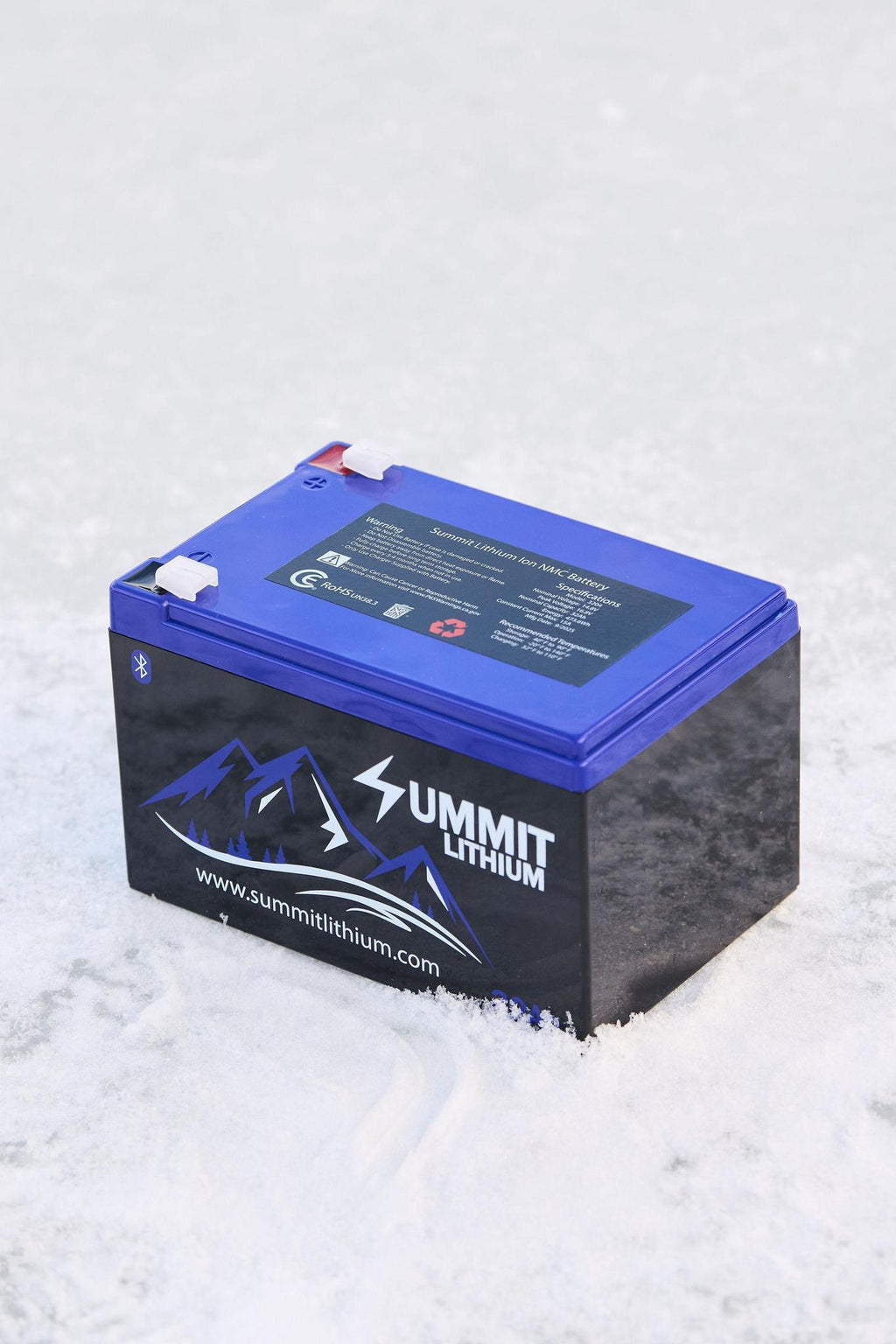

• 32Ah Summit Lithium Battery
• 6A Fast Charger
• SAE Quick-Connect Harness

Safety Notes:

• Charge only with included charger
• Do not charge below 32°F
• Keep away from water or moisture
• Do not expose above 158°F
• Do not open, modify, or short-circuit
• Do not wire in series
